Patriot Craft Stills to Distill Spirits
- 20 gal - 1250 gal Options
- Electric or Steam-heated stills
- Explosion-proof agitator motors, gearboxes & heating elements
- Customizable
- International Compliant Components
Custom Distillery Solutions Provider
Planning a distillery? Thinking of adding a distillery to your brewery?
With continuous and batch stills ranging from 150L to 15000L, and all the equipment needed to go from grain to spirit, Boben Light Industry Machinery Equipment can help!
We'll help you through setting up your still in accordance with the local requirements and to the highest safety standards to protect your team, factility, and equipment.

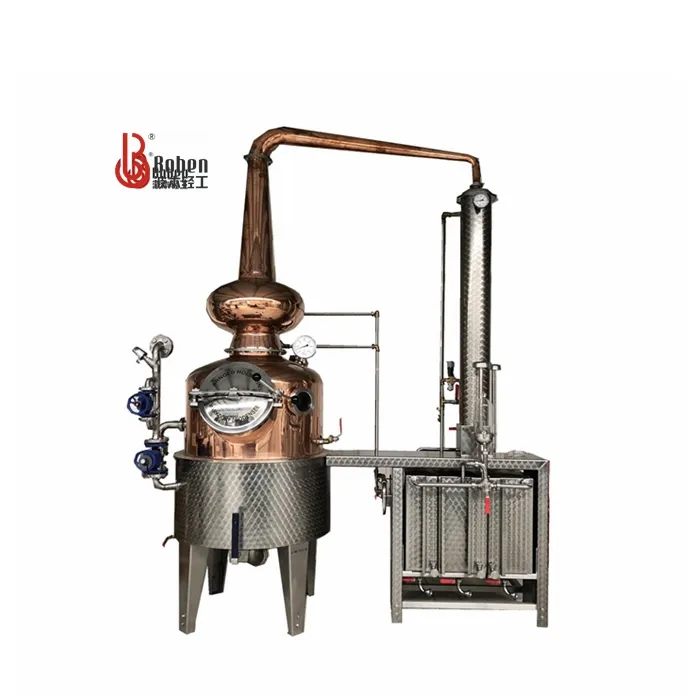

Our electrically heated bain-marie systems and steam fired systems are available as either a compact still, great for making a range of spirits with in the most space-efficient footprint, or a universal still, offering the most versatility for making a full range of spirits.
Still Heating Systems
Electric Systems
The electrically heated stills utilize a Bain Marie configuration. Electric heating elements are placed in an oil bath (shown as orange in the picture) that is surrounding the still's pot. The oil is heated by the elements, which in turn heats the wash. This results in a very even heating to avoid any scorching of grains, or other solids that are used in the pot. It also places the elements inside the oil bath eliminating the safety concerns of them being inside the wash where ethanol vapors are present.
Steam Systems
We offer natural gas, propane, fuel oil, and electric fired steam boilers. The boilers would be located outside of the class 1 division 2 area and the steam would be piped to the still's jacket. We provide a variable position steam valve that is controlled by the control system.
Our electrically heated bain-marie systems and steam fired systems are available as either a compact still, great for making a range of spirits with in the most space-efficient footprint, or a universal still, offering the most versatility for making a full range of spirits.
About Boben Distilling Equipment
Distillation must begin with fermentation, and Boben can supply equipment for brewing a malt or cereal wort, or through our parallel business, Boben supply equipment to produce a fruit wash. We can also supply the handling and fermentation equipment to turn molasses into rum. But once your microflora and fauna have converted your carbohydrates to ethanol, and other volatile organic compounds,

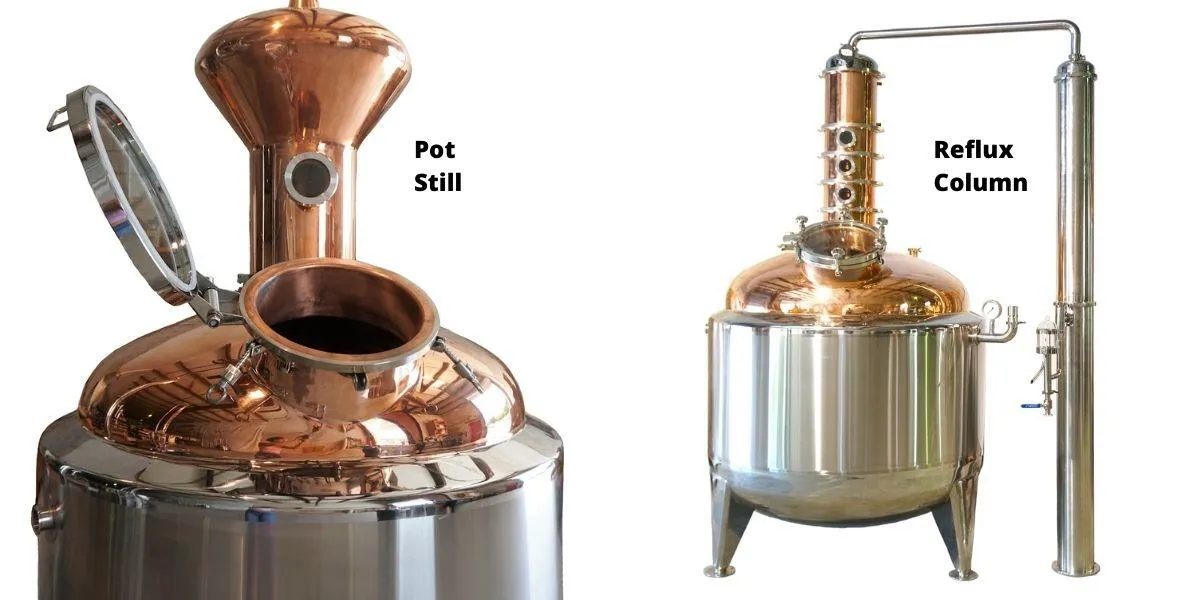

Boben can supply stills, from a volume of 50L to 5000L and more. The geometry and material of construction will depend on the duty and Boben have supplied small copper still for rectification of gin, large double whiskey stills and tall column stills of 28 plates or more for producing “grain to glass” neutral alcohol. Boben can also offer continuous distillation for higher outputs. For the brand new distilling venture, Boben also offers a recipe development service, as well as project management and extended training.
Distilling separates a mixture based on its components’ boiling points and the accuracy – or how distinct the fractions are – depends on the geometry of the still. Some heavy distillations, of say whiskey or brandy, benefit from the flavour of less distinct cuts. Some, like vodka or neutral spirit for gin production, try to remove all components except ethanol, and do so using columns filled with plates, trays or packing.
However, a copper still is also a thing of beauty. Its dull orange colour, towering windowed columns and steam age dials and instruments make something quite industrial, very artisan.
Boben Frequently Questions:
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
Q2. What is your terms of payment?
A: T/T in advance, 50% as deposit, and finish 50% balance payment before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU. DDP.DAP
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How long the warranty will be?
A: 1 Year warranty
Q9: How about the installation and repair?
A: We provide online instruction or we send our engineer to your company to fix the problem.But round-trip ticket and accommodation fees are on your side.
Q10: How could we confirm the products?
A: Our professional engineers will follow up all the designs and adjustments according to your requirement.OEM and ODM available.
Q11: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q12: What's your MOQ?
A: 1 set.
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and others. * Qualified wooden package or carton for different products or as customer require * Strict packing process to ensure the safety and completeness of the goods
Shanghai Boben Light Industry Machinery Equipment.
We are specialized in the turn-key customs designing, production, installation of Distillation & brewing industry.
We are China based alcohol distillery equipment manufacturer with 10+ years of experience. Specialized in custom designing, production and installing turn-key distillation project.
May I have more details about your request?
1. Which kind of spirits are you going to make?
2. How big you want it be? We can make 50-5000L
3.Will you prefer electric heating or steam heating?
Looking forward your respons to recommend you the most suitable design.
