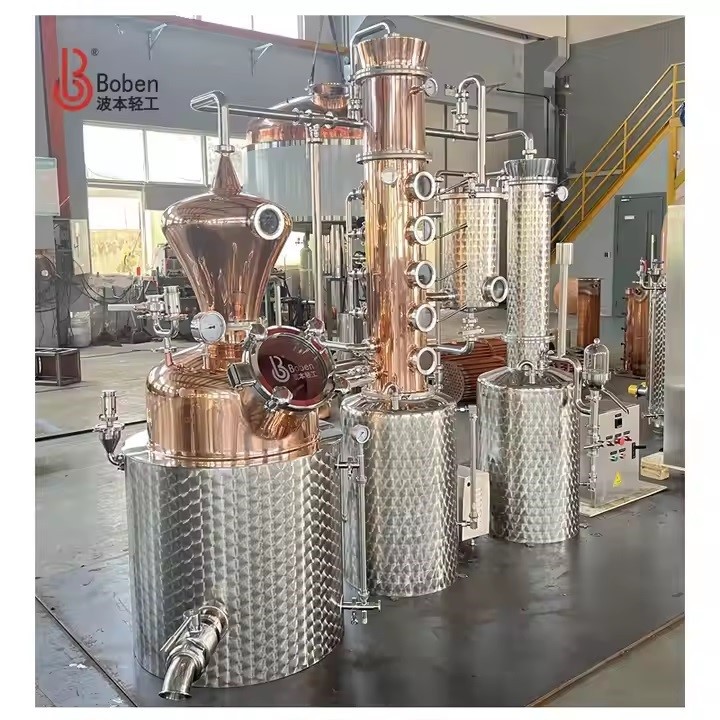

Our 200L Copper Hybrid Still Pot + Column Distillery System is a high-performance distillation setup designed for craft distillers, professionals, and enthusiasts seeking superior spirit quality. This system features a 4-plate rectification column, an integrated Gin basket, and optional motorized stirring, making it ideal for producing whiskey, rum, vodka, gin, and other premium spirits.
As a featured exhibit at the 2025 ADI (American Distilling Institute) Expo, this system combines traditional copper craftsmanship with modern distilling efficiency.
product key technologies
✅ 200L Copper Pot Still – Made from high-quality pure copper (T2) for excellent thermal conductivity and sulfur removal, enhancing spirit smoothness and flavor.
✅ Modular Design – Pot, column, and condenser are separate (not welded together), allowing flexible configurations and easy cleaning/maintenance.
✅ 4-Plate Rectification Column – Enables precise fractional distillation for higher ABV and cleaner spirits (up to 90+% alcohol when refining neutral spirits).
✅ Integrated Gin Basket – Perfect for infusing botanicals when crafting premium gin or flavored spirits.
✅ Optional Motorized Stirrer – Prevents scorching for thick mashes (e.g., whiskey, rum) and ensures even heating.
✅ Dedicated Alcohol Collection Tank – Streamlines the distillation process with efficient spirit collection.
✅ Shell and Tube Condenser – Rapid cooling for optimal distillation efficiency.
✅ ADI Expo 2025 Showcase – A trusted choice for professional distillers.
Why Choose This System?
✔ Versatile – Distill whiskey, rum, vodka, gin, brandy, and more with adjustable configurations.
✔ Premium Copper Build – Enhances flavor by removing sulfides and impurities.
✔ Scalable & Upgradeable – Compatible with additional accessories (e.g., dephlegmator, extra plates).
✔ Commercial & Craft Use – Suitable for small-batch distilleries, home distillers, and professional setups.
Technical Specifications
-
Material: Pure copper (pot, column)
Capacity: 200L (53 gallons)
Column Type: 4-plate rectification
Gin Basket: Stainless steel (botanical infusion)
Condenser: Shell and Tube Condenser
Heating Options: Electric, gas, or steam (heater not included)
Modular Base: Separate stands for pot, column, and condenser
-
Perfect For:
Craft & Commercial Distilleries
Gin & Flavored Spirit Producers
Whiskey & Rum Makers
Vodka & Neutral Spirit Refinement
-
Order Now & Elevate Your Distillation Process!
This 200L Copper Hybrid Still System is a limited-edition showcase model from the 2025 ADI Expo. Custom configurations (e.g., additional plates, automation) are available-contact us for details!
🔹 Free Shipping (USA & Canada)
🔹 1-Year Warranty
🔹 Lifetime Technical Support📞 Contact us today for bulk orders or customization!(+8619157816531)
