500L Alambic Hybrid Still
High-Efficiency Distillation Solution for Craft Distilleries
🌟 Product Overview

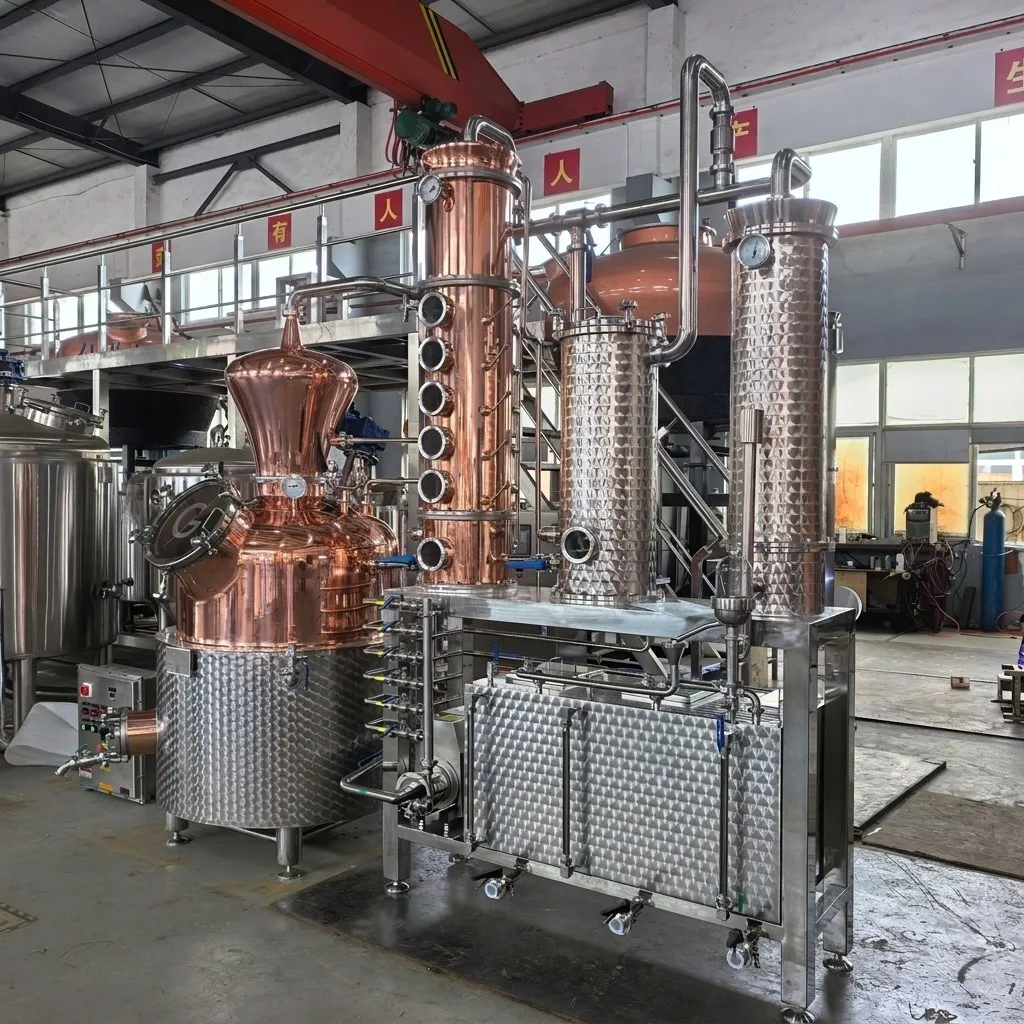

This 500L Hybrid Still is a masterpiece of engineering, designed for versatile craft spirit production. By combining the traditional copper pot still's flavor retention with the modern efficiency of a column still, it allows distillers to produce everything from heavy whiskies and brandies to high-purity vodka and gin in a single run.
High-Efficiency Distillation Solution for Craft Distilleries
🌟 Product Overview
This 500L Hybrid Still is a masterpiece of engineering, designed for versatile craft spirit production. By combining the traditional copper pot still's flavor retention with the modern efficiency of a column still, it allows distillers to produce everything from heavy whiskies and brandies to high-purity vodka and gin in a single run.
🛠 Key Technical Specifications
| Feature | Detailed Description |
|---|---|
| Distillation Column | 5-Plate Rectification Column Equipped with individual bubble plate controls to precisely manage the reflux ratio, achieving a final spirit purity of up to 90%+ ABV. |
| Safety Agitation | Explosion-proof Agitator Industrial-grade high-torque motor with full explosion-proof certification, ensuring maximum safety when handling high-proof alcohol vapors. |
| Precision Heating | Water Bath Electric Heating with Ex-proof Elements Utilizes an indirect water bath system to ensure uniform heat distribution. This prevents scorching (burning) of the mash and preserves the delicate aromatics of your raw materials. |
| Spirit Collection | Exquisite Square Spirit Receiver Crafted from food-grade SUS304 stainless steel. The sleek square design integrates a high-visibility flow meter and a sampling valve for easy quality monitoring. |
✨ Added Professional Details
Premium Red Copper Catalysis: The helmet and column internals are constructed from T2 grade red copper, crucial for removing sulfides and enhancing the smoothness and complexity of the final spirit.
Integrated CIP System: 360° high-pressure spray balls are installed in all major chambers, ensuring thorough cleaning between batches and reducing labor costs.
Multi-Stage Condensing: A high-efficiency tube-and-shell condenser provides rapid cooling and a steady output stream, allowing for precise "heart" cuts.
Visual Control Interface: Features toughened glass sight ports on every plate and industrial-grade tri-clamp thermometers for real-time monitoring of the distillation process.
Optional Automation: Supports upgrading to a PLC Touchscreen Control System for automated temperature, flow, and safety management.
🥃 Target Spirits
Whiskey & Brandy: Bypassing the column allows for rich, ester-heavy spirits.
Vodka & Gin: Engaging the 5-plate column produces ultra-clean spirits. Perfect for botanical infusion when used with an optional gin basket.
