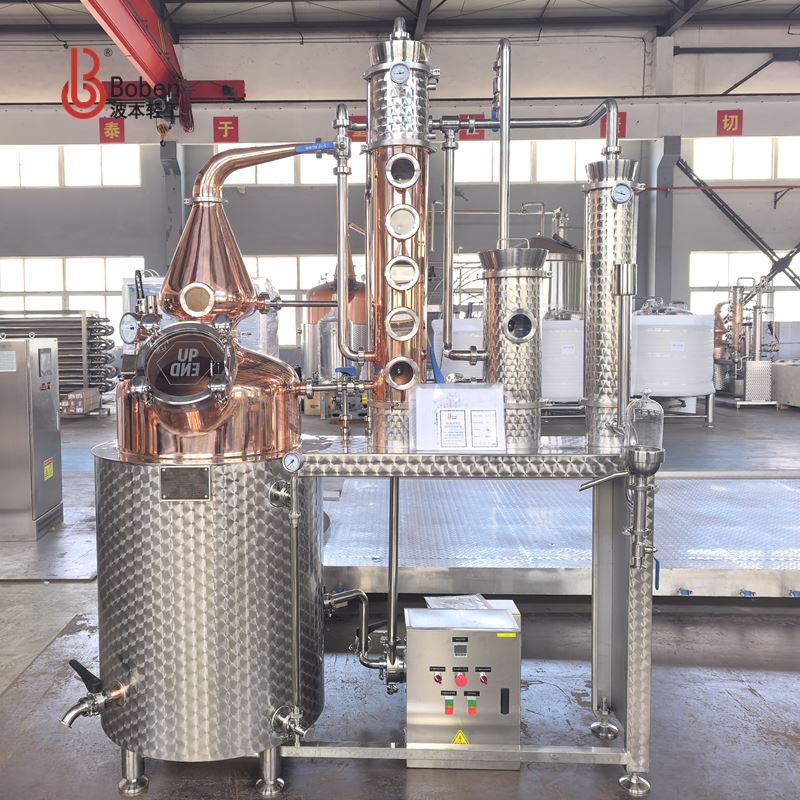

250L Hybrid Still – Multi-Purpose Distillation System
Product Overview
This 250L hybrid distillation system is designed for distilleries producing whiskey, brandy, rum, gin, and other craft spirits. Combining a copper pot with a stainless steel jacket and an integrated rectification column, it offers excellent flavor refinement and operational flexibility - ideal for both R&D and small-batch commercial production.
Key Features
All-Copper Pot – 3mm thick copper inner tank ensures superior heat transfer and flavor development.
Water Bath Electric Heating – Equipped with 2 × 10kW heating rods for stable and even heating.
Pear-Shaped Copper Head – 3mm thick copper construction with observation glass and thermometer.
4-Layer Copper Column – 8-inch diameter, 3mm thick, with 5 sight glasses and a stainless steel dephlegmator for precise reflux control.
Stainless Steel Gin Basket – Removable filter basket for botanical infusion, ideal for gin production.
Efficient Condenser – Stainless steel construction for reliable cooling and high yield.
Stirring System – 0.37kW explosion-proof mixer for even heat distribution and handling of thick mashes.
CIP Cleaning System – 0.75kW pump for easy in-place cleaning and maintenance.
Manual Control Panel – Stainless steel enclosure with intuitive controls for temperature and operation monitoring.
Complete Ancillaries – Includes full-view manhole, cleaning balls, safety vent, and stainless steel stand.
Specifications
| Parameter | Details |
|---|---|
| Working Capacity | 250L |
| Heating Method | Electric water bath (2 × 10kW) |
| Pot Material | Copper (inner tank, 3mm) / Stainless steel (jacket, 3mm) |
| Column | Copper, 8" × 4 layers with dephlegmator |
| Condenser | Stainless steel |
| Gin Basket | Stainless steel |
| Mixing | 0.37kW explosion-proof |
| CIP Pump | 0.75kW |
| Control | Manual electric control box |
| Packaging | 1 wooden case (approx. 6 CBM) |
Why Choose This System?
Versatile – Suitable for whiskey, gin, rum, brandy, and more.
Flavor-optimized – Copper contact reduces sulfides for a cleaner, smoother spirit.
Easy to Maintain – CIP system and modular design minimize downtime.
Customizable – We can tailor configurations to your specific production needs.
