Gin Distillery Equipment
- 1.Company Brief Introduction
Boben distilling equipment factory is one of China’s leading China alcohol distillation equipment manufacturers and suppliers, Boben factory production base located in Hangzhou, China, Boben specialized in the custom design, production, installation of red copper and stainless steel distillation equipment and beer equipment for distillers and brewers.
Our factory supply everything from commercial volume distilling equipment to table-top home stills at direct factory price.

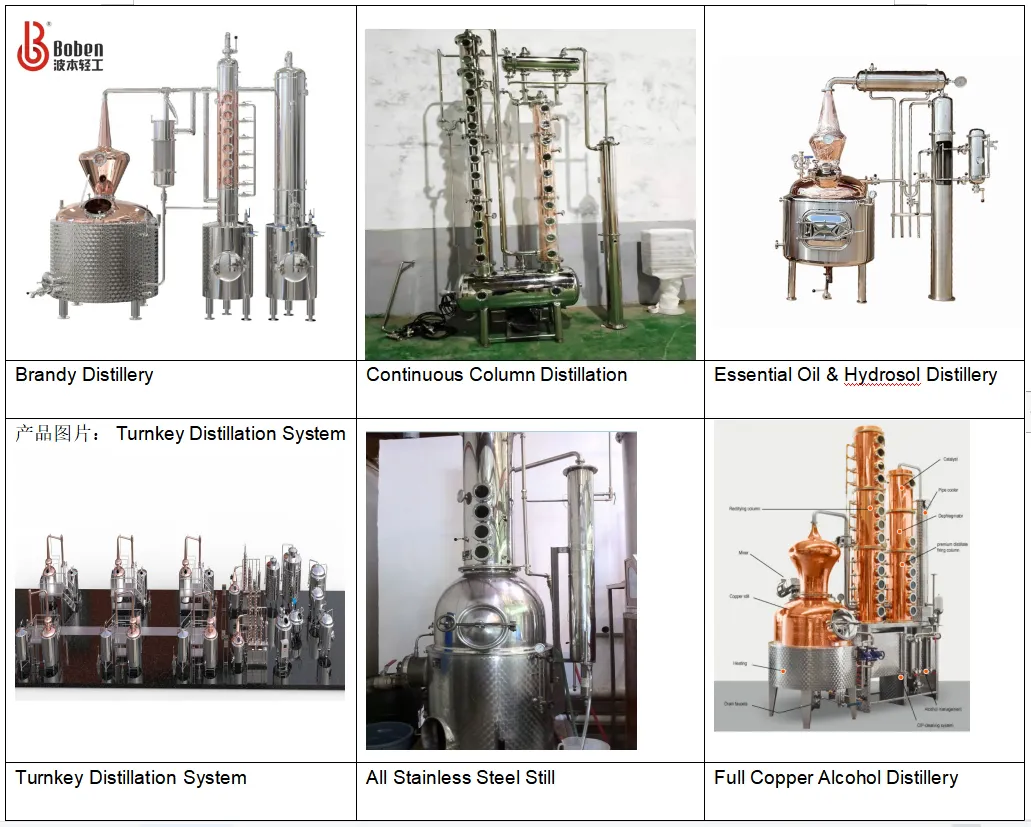

We manufacture pot still distillation that is suitable for traditional whiskey, brandy, or rum production, and continuous column distillation, essential oil distiller.
Our gin distillery equipment can be made of copper and 304 stainless steel combination or all stainless steel, or either full copper material. Stainless steel Alcohol Distiller is durable, copper conducts distillation equipment pot stills heat well and helps extract aromas. Copper cost more but it’s definitely worth it!
The gin distiller volume available is 5L to 16,000L, especially suitable for home and farm gin distillation stills use, is easy-operated, easy to access.
Boben Light Industry provides direct factory price and professional product of alcohol distillery equipment, include mini desktop stills, home distilling kits, micro distillery, commercial distilling equipment, large industrial distiller, turnkey distillery system, batch distillery and continuous column distillation, our Boben factory is also a direct manufacturer for essential oil & hydrosol distillers in widely application fields
Alcohol Distillery Equipment are widely in many industries, can reach multi purpose:
Multi purpose of :
to distill different types of alcohol :
- 2. Product Information
Boben Light Industry Machinery can design, manufacture and install copper gin still gin distillation equipment ranging in capacities from 100 litres to 16,000 litres.
Stills can be made in stainless steel, copper or a combination of both, our copperwork is carefully hand crafted by Boben Light Industry Machinery crew.
The copper gin still with gin basket and copper reflux column is a hybrid-style mulit purpose pot still for producing various kinds spirits such as whiskey,vodka,gin,brandy,rum and moonshine etc, bypassable multi-tray rectification columns and gin basket complete with the condenser. Customized to suite your specific spirit range. The gin still with botanical gin basket can be electrically or steam heated or gas heated, botanticals basket is commonly used for vapour infusion and a copper condenser.
Copperwork was hand crafted by Boben Light Industry Machinery Manufacturing
The copper gin still distillation tank boiler sizes range from 100 litres to 6,000 litres , can be constructed with stainless steel and/or copper, and usually offered in a hybrid-style pot still with a wide selection of heads, bypassable multi-tray rectification columns and gin basket complete with the condenser. Customized to suite your specific spirit range. The gin still can be electrically or steam heated, includes a botanticals basket for vapour infusion and a copper condenser.
There are a large variety of options to chose from depending on available services and the chracter of spirit desired. Heating of copper gin still can be from internal coil, external steam jacket or external water bath. Botanicals can be added to the liquid and mixed with optional mixer or vapour infused either in a basket built into the still neck column or in a seperate basket. Reflux can be adjusted by lye pipe angle and if necessary a dephlegmator.
- 3. Advantage Features
The Gin Basket various design
Stainless steel construction with Removable perforated basket
Bypass or inline and Full CIP construction
Condenser is Tube and shell type
Stainless steel or copper construction
Chilled with glycol or water
Simple parrot
Full CIP
Optional glass parrot
Optional thermostatic valve
Tube and shell column condenser
Stainless steel or copper construction
Chilled with glycol or water
- 4. Gin Distillery Equipment Components parts：
- 1. Still pot: customized capacity,copper or stainless steel made,or combined.Ex-proof and CSA/UL/CE listed motor is available.Full size glass manway for easy observation of pot work.Steam heating,electric heating(direct or indirect type) or direct fire heating is available for your choice.
- 2. Helmet/Gooseneck: Various shape is available and we can also customize it as per your request.
- 3. Gin basket:Copper or S shell with copper sieve inside

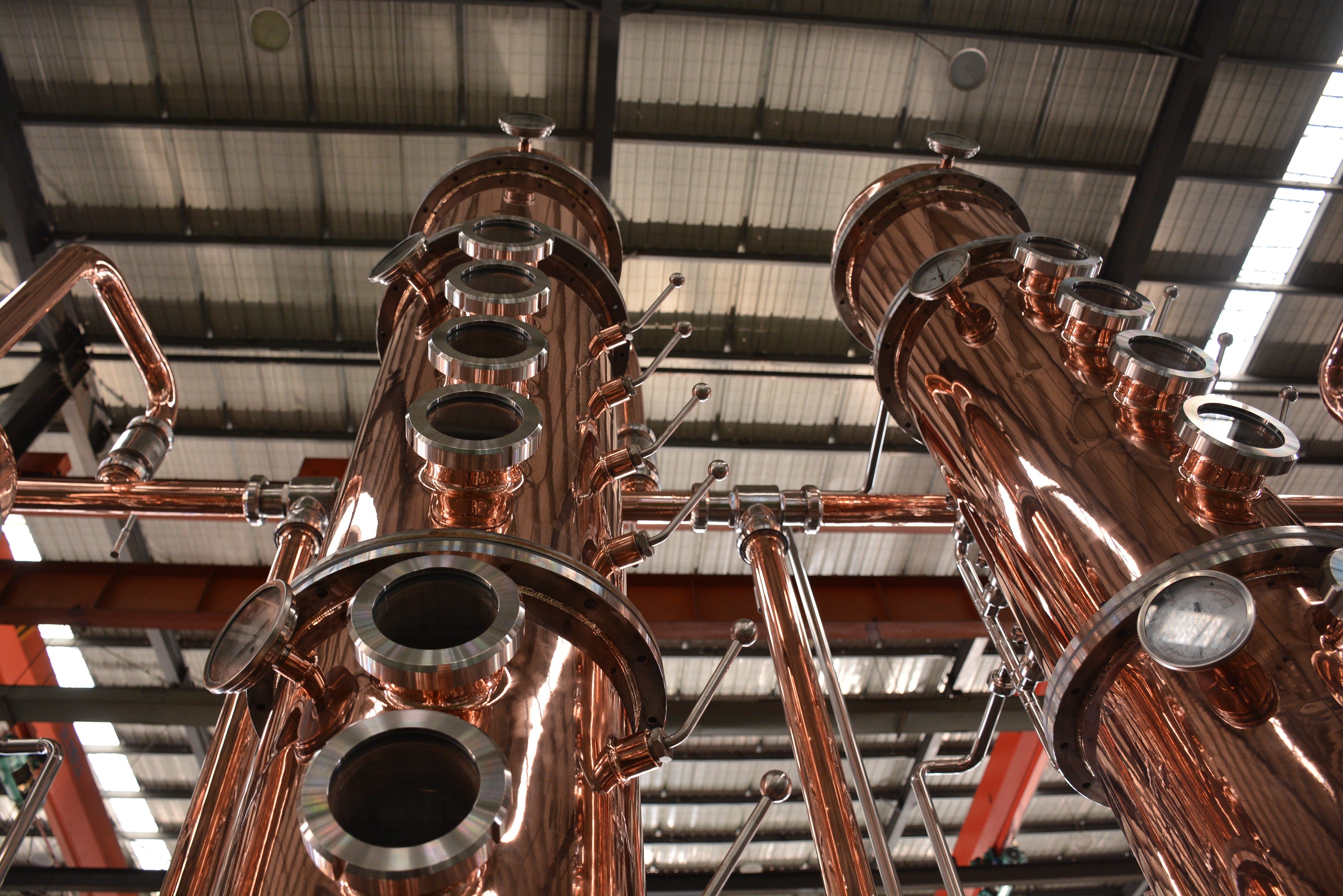

- 4. Distillation column: Copper or stainless steel material is available. Copper bubble plates,by-pass valve/CIP ball/sight light/sight glass
- 5. Condenser column:Copper or stainless steel made,tubes can be ss or copper made as per your demand
- 6. CIP plumbing system:CIP pump and fittings are available
- 7. Surface finish:fish scale finish,satin finish or mirror finish
- 8. Parrot Wine Outlet: Can be red copper or Stainless Steel
|
SPIRIT TYPE |
CAPACITY |
COMPONENTS |
|
Whisky distiller |
50-6000L |
Still pot, swan neck, condenser, CIP, pipe system |
|
Vodka distiller |
50-6000L |
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system |
|
Bradny distiller |
50-6000L |
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system |
|
Rum distiller |
50-6000L |
Still pot, column, condenser, CIP, pipe system |
|
Gin distiller |
50-6000L |
Still pot, column, gin basket, condenser, CIP, pipe system |
|
Multi-spirits distiller |
50-6000L |
Still pot, onion head, column, gin basket, dephlegmator, condenser, CIP, pipe system |
-
Still pot: customized capacity,copper or stainless steel made,or combined.
Ex-proof and CSA/UL/CE listed motor is available.
Full size glass manway for easy observation of pot work.
Steam heating,electric heating(direct or indirect type) or direct fire heating is available for your choice.
2. Helmet/Gooseneck: Various shape is available and we can also customize it as per your request.
3. Gin basket:Copper or S shell with copper sieve inside
4. Distillation column:
Copper or stainless steel material is available. Copper bubble plates,by-pass valve/CIP ball/sight light/sight glass
5. Condenser column:Copper or stainless steel made,tubes can be ss or copper made as per your demand
6. CIP plumbing system:CIP pump and fittings are available
7. Surface finish:fish scale finish,satin finish or mirror finish
8.Parrot Wine Outlet: Can be red copper or Stainless Steel
5. Processing work flow:
Boben as a professional alcohol distillery equipment manufacturers in China, we provide Alcohol Distillation Equipment that are all manually made by good manufacturer craftmanship, all completed distilling equipment orders are strictly inspected before factory delivery by manufacturer quality inspector with several rounds verifying they’re strictly conform to distiller production drawings.
Boben factory provide free technical designs for all distiller equipment inquires.
The distillation equipment is mainly made of copper plates welded and processed. At present, it is mainly manual welding, and some very experienced masters are also doing copper welding.
Process: design drawings - blanking - sheet pretreatment - forming - welding - grinding - pressure test - assembly
- R&D Design
- Production Flow: Raw material cutting-rolling-welding-polishing-testing-assembly-testing
- 6. Working Volume Capaicty:
Boben as a professional alcohol distillery equipment manufacturers in China, we provide Alcohol Distillation Equipment that are all manually made by good manufacturer craftmanship, all completed distilling equipment orders are strictly inspected before factory delivery by manufacturer quality inspector with several rounds verifying they’re strictly conform to distiller production drawings.
Boben factory provide free technical designs for all distiller equipment inquires.
The distillation equipment is mainly made of copper plates welded and processed. At present, it is mainly manual welding, and some very experienced masters are also doing copper welding.
Process: design drawings - blanking - sheet pretreatment - forming - welding - grinding - pressure test - assembly
- R&D Design
- Production Flow: Raw material cutting-rolling-welding-polishing-testing-assembly-testing
|
Working capacity: |
5L-16000L Still Pot |
|
Total Volume: |
working capacity*130%-150% |
|
Voltage: |
200V-240V/380-440V/600V |
|
Weight: |
500kg-5000kg |
|
Material: |
SUS304 /SUS316L /COPPER T2 |
|
Motor: |
3-phase power,UL/CSA/CE/ATEX,or Customizable brand |
|
Certificate: |
ICE Standard (Made in China) |
|
Welding Technolog： |
High purity argon arc welding |
|
Heating Method: |
Steam/Water bath/Oil/Electric/Firewood/Gas |
|
Heating form: |
Direct or indirect heating |
|
Distillation method: |
Liquid distillation by default, custom solid distillation can be customized |
|
Running time: |
2-8h, Customizable continuous distillation |
|
Shape: |
Upper and lower heads/Customizable |
|
Distilled products: |
Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon |
|
Optional module: |
1.Cooling water recycling system 2.Light system 3.Alcohol storage tank system(Head/Heart/Tail) |
- 7. Service
Pre-sale service：
Free of making offers, craft and technical guidance.
We can provide OEM Services.
We can also do customization equipment according to customer's needs.
Products allow 1year warranty for main parts.
There are a large variety of options to chose from depending on available services and the chracter of spirit desired. Heating of copper gin still can be from internal coil, external steam jacket or external water bath. Botanicals can be added to the liquid and mixed with optional mixer or vapour infused either in a basket built into the still neck column or in a seperate basket. Reflux can be adjusted by lye pipe angle and if necessary a dephlegmator.
- 8. Types of alcohol distillation product
Boben Light Industry is the professional manufacturer of alcohol distilling equipment and brewing equipment from China,
more than 80% products are export to all over the world!
We are one of the large direct R & D manufacturers of gin distillers machine in China. We provide Vodka, Gin, Run, Whisky, Brandy DISTILLER SYSTEM SOLUTIONS. Our factory is the leading company of still equipment in China, with the strength of providing vodka, gin, run, whisky, brandy making machines.
- 9. F&Q:
- Frequently Asked Questions:
Q: How long the warranty will be?
A: 1 Year warranty
Q: How about the installation and repair?
A: We provide online instruction or we send our engineer to your company to fix the problem. But round-trip ticket and accommodation fees are on your side.
Q: What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay; Language Spoken:English,Chinese,Spanish
