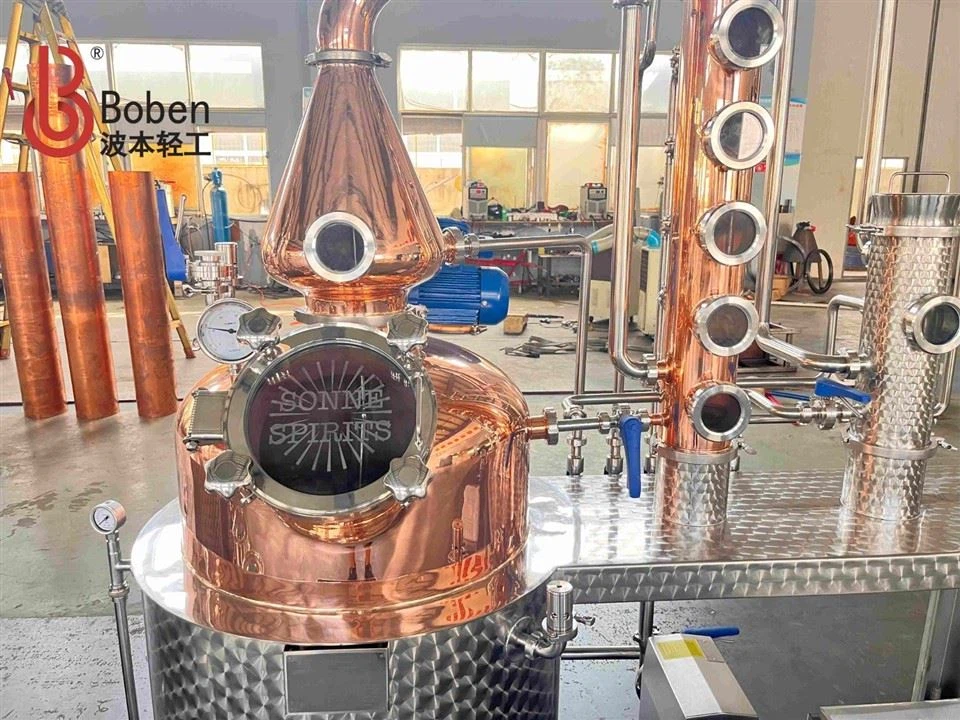

📄 PRODUCT DATASHEET: 200L Hybrid (Copper & Stainless Steel) Multifunctional Still
🌟 1. Product Overview
The 200L Hybrid Multifunctional Still is a professional-grade distillation system engineered for the discerning craftsperson and commercial micro-distillery. It masterfully combines the traditional benefits of copper with the modern durability of stainless steel. This synergy creates a versatile workhorse capable of producing exceptionally smooth spirits and pure botanical extracts with maximum efficiency and unparalleled control. Its iconic design is a statement piece in any distillery, lab, or workshop.
⚡ 2. Key Features & Benefits
🏗️ Hybrid Material Construction: The distillation core (helm, onion head, condenser) is crafted from oxygen-free copper (C10100), which catalyzes the removal of sulfides for a smoother spirit. The main boiler and piping are made from #304 / #316 Food-Grade Stainless Steel, ensuring robust structural integrity, corrosion resistance, and easy cleaning.
🔧 Multi-Functional Design: A true all-in-one system for producing a vast range of spirits and extracts. Perfect for whiskey, gin, vodka, essential oils, and hydrosols.
📊 Precision Control: Equipped with professional dial thermometers and pressure gauges. Features adjustable steam valves and safety releases for complete command over the entire distillation process.
❄️ High-Efficiency Condensation: A large, copper shell-and-tube or coil condenser ensures rapid and complete liquefaction of vapors, preserving the delicate volatile compounds and maximizing yield.
🛡️ Built-in Safety: Includes multiple safety features: automatic pressure release valves, sight glasses for liquid level monitoring, and over-temperature protection for complete peace of mind.
📐 3. Detailed Technical Specifications
| Parameter Category | Specification Details |
|---|---|
| 📍 Capacity | • Total Volume: 200 Liters • Max Charge Volume: ~150 Liters • Avg. Ethanol Output/Batch: ~12-15 Liters (from 10% ABV wash) |
| 🔩 Materials | • Main Boiler: copper or 304 Stainless Steel(≥ 2.0mm thickness) • Condenser & Column: Oxygen-Free Copper (≥ 1.5mm thickness) • Gaskets/Seals: Food-Grade Silicone / PTFE |
| 🔥 Heating Options | • Option A: Internal Electric Heating Elements (18-24 kW, 380V 3-Phase) • Option B: Steam Jacket (requires external steam generator) • Option C: Direct Fire (requires reinforced base plate) |
| 💧 Condenser System | • Type: Copper Shell & Tube / Coil Condenser • Surface Area: ≥ 0.8 m² • Water Connections: DN25 Standard Inlet/Outlet |
| 🎛️ Control System | • Instruments: Dial Thermometers, Pressure Gauge • Power: SSR Power Regulator or Multi-Stage Switch • Safety: Auto Pressure Release Valve, Thermal Cut-Off |
| 📏 Physical Dimensions | • Height: ~1800 - 2200 mm • Diameter: ~800 - 900 mm • Net Weight: ~150 - 200 kg |
🥃 4. Applications & Distillable Products
This still is designed to produce a wide spectrum of high-value products:
Distilled Spirits:
• 🥃 Whisky: Ideal for pot still distillation, capturing the full congener profile for a flavorful spirit.
• 🍇 Brandy: Perfect for distilling fine wines and fruit washes into exquisite Eau-de-vie.
• ⚪ Vodka: Achieve high-purity neutral spirits (up to 95% ABV) through fractional distillation.
• 🍯 Rum: Distill fermented molasses or sugarcane juice wash.
• 🌿 Gin: Use as a pot still for botanical maceration distillation or attach a column for vapor infusion.
• 🌵 Tequila/Mezcal: Distill fermented agave juice.
Other Products:
• 🌸 Hydrosols & Floral Waters: (e.g., Rosewater, Orange Blossom Water).
• 💧 Essential Oils: (e.g., Lavender, Peppermint - requires an essential oil separator).
• 🧴 Herbal Tinctures & Concentrates: For medicinal and culinary uses.
📋 5. Step-by-Step Operational Guide
⚠️ WARNING: Distillation involves high temperatures, pressure, and flammable vapors. Operate only in a well-ventilated area by trained personnel, adhering to all local safety regulations.
🛁 Preparation & Charging:
Clean the still thoroughly with hot water and a mild detergent.
Fill the boiler with your fermented wash through a filter funnel. DO NOT exceed 75% (150L) of total capacity.
Secure all clamps and lids evenly to ensure a perfect seal.
🔥 Distillation Run:
Start Cooling Water: Always begin by turning on the condenser water supply. Ensure a steady flow.
Apply Heat: Start the heating system. Gradually increase power to bring the wash to a boil.
Foreshots (~1-2% of output): The first liquid to condense contains volatile compounds like methanol. Collect this separately and DISCARD it.
Hearts: Once the foreshots are collected, the "hearts" will run. This is the desirable, high-proof ethanol. Collect this fraction until the spirit's quality begins to drop (determined by taste, smell, or proof).
Tails: The output becomes oily and cloudy with lower ABV. Switch collection vessels for the "tails." These can be recycled into your next fermentation run.
🛑 Shutdown & Cleaning:
After collection is complete, turn off the heat source.
Allow the system to cool down while the cooling water continues to flow for a short period.
Drain the spent wash from the boiler.
Rinse the interior with clean water and allow it to dry completely to prevent contamination or corrosion.
🔧 6. Service & Support
Comprehensive installation and operation guide/video provided.
12-month warranty on the main vessel and craftsmanship.
Lifetime technical support and availability of spare parts.
📄 Disclaimer: Specifications are subject to change without prior notice to allow for continuous product improvement. Please confirm the exact specifications with your sales representative at the time of order.
